Model | Rated Capacity (t/h) | Screen Area (m²) | Rotary Speed (r/min) | Power (kW) | Weight(kg) | Dimensions (L×W×H) (mm) | ||
Pre-cleaning | Cleaning | |||||||
HZXZ150X250 | Double Layers | 50-60 | 30-50 | 3.75 | 320 | 3 | 2750 | 2988×2205×2105 |
HZXZ150×250A | Three Layers | 50-60 | 30-50 | 3.75 | 320 | 3 | 2950 | 2988×2205×2105 |
HZXZ200×250 | Double Layers | 60-80 | 40-60 | 5 | 320 | 4 | 2850 | 2988×2705×2105 |
HZXZ200×250A | Three Layers | 60-80 | 40-60 | 5 | 320 | 4 | 3100 | 2988×2705×2105 |
The material enters from the food inlet ①, the material is homogenized by the feeding device ②, the material is sent to the first layer of the screen surface ③, under the action of the screen body plane rotation movement, the material is pushed backward with the first layer of the screen surface ③, while the material less than the first layer of the screen continues to fall to the second layer of the screen surface ⑤, the second layer of the screen surface ⑤ the material is pushed behind the screen face. Impurities or materials smaller than the second layer of screen holes continue to fall to the bottom plate 7, the first layer of screen surface 3 on the large or material, the second layer of screen surface 5 on the material, the small impurities on the bottom plate 7 continue to push backward, in the discharge box to separate the large 4, material 6, small impurities 8, so as to complete the material cleaning or grading process.
Our HZXZ series rotary vibration cleaner produced are improved based on rotary screens and vibration screens. Especially suitable for large capacity cleaning impurities (large, middle and small impurities) and large capacity grading granular materials. It is widely used in food, grain, feed, chemical, brewing and other industries. This machine can be used independently, besides it can be matched with vertical suction separator or self-circulation air separator, too. Which can effectively separate light impurities and dust. One machine can clean various grains such as wheat, maize, rice, beans, oil seeds by changing different sieves.

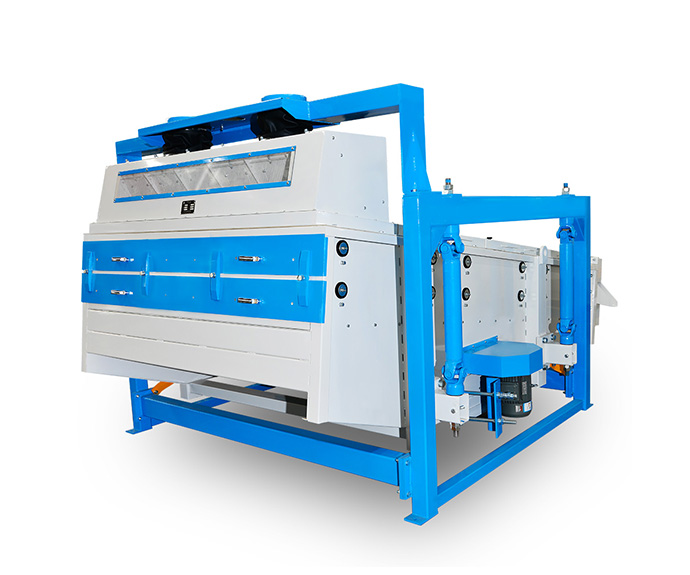

HZXZ series rotary vibration cleaner is mainly composed of frame, suspension device, screen body, screen mesh, feeding system, discharging system, transmission system and other structures.
l High overall strength, large capacity, low malfunction , good effect for cleaning (large, medium, small impurities) and classification;
l Feeding box is equipped with a uniform distributor, the material evenly covers the screen surface to ensure the efficiency of screening and classification;
l The universal joint suspender hangs the screen body, stable and durable;
l Transmission modular structure, overall replacement, saving maintenance time;
l The metal sieve has high strength and stiffness, and is easy to assemble and disassemble, saving maintenance time;
l The sieve grid is compressed vertically, with dual functions of compression and sealing, horizontally compressed, dual functions of adjusting the horizontal position of the sieve grid and horizontal compression;
l Flat vibration runs smoothly, less vibration to the floor and the ground;

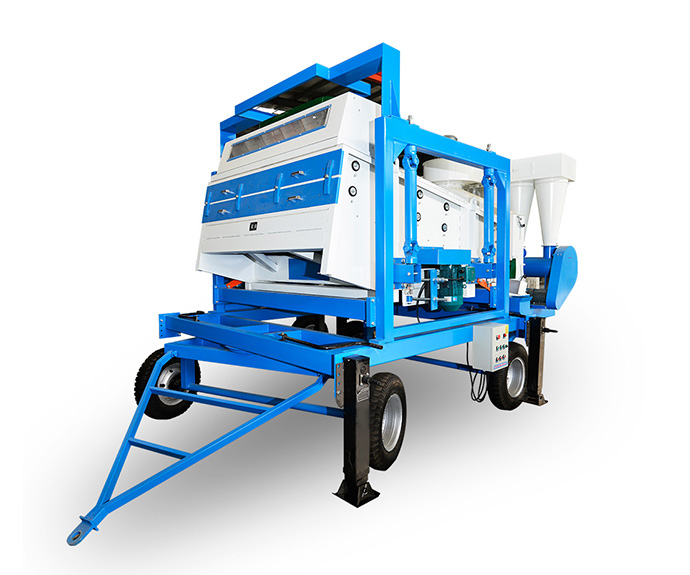

l To meet different needs, there are fixed type and mobile type for customers.
l Can be equipped with bearing temperature display and alarm system (user option)
