Model | Capacity(t/h) | Selection Rate (%) | Power (kW) | Screen Area (m²) | Amplitude (mm) | Screen Grid | Air Volume (m³/h) | Dimensions (mm) |
5X-5 | 5.0 | ≥98.5 | 6.7 | 7 | 28 | 4 layers 7pcs | 8200 | 3200×1920×3870 |
5X-10 | 10.0 | ≥98.5 | 6.7 | 15 | 28 | 5 layers 15pcs | 11000 | 3900×1944×4060 |

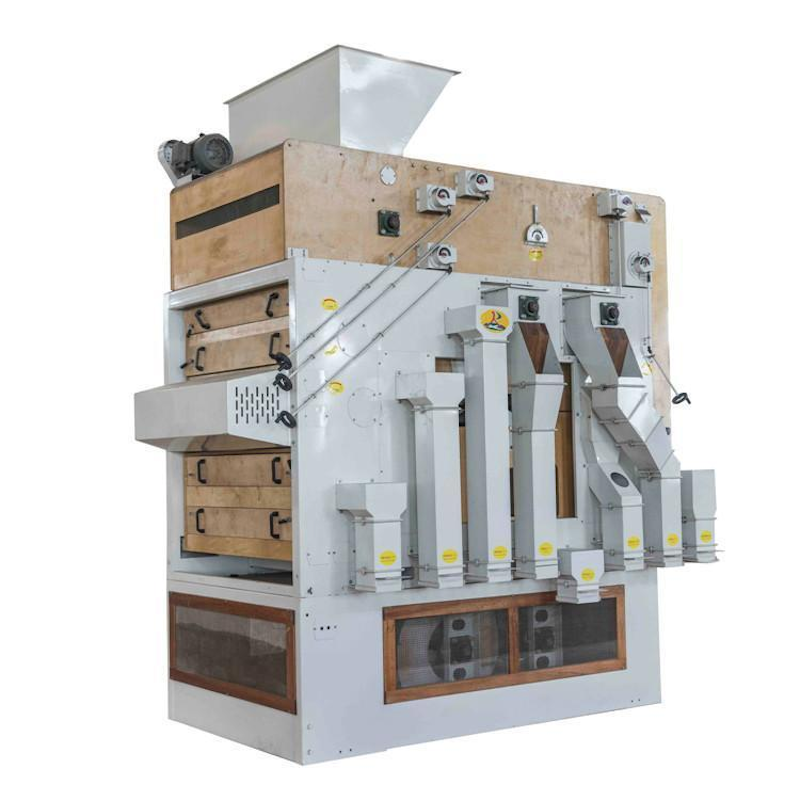

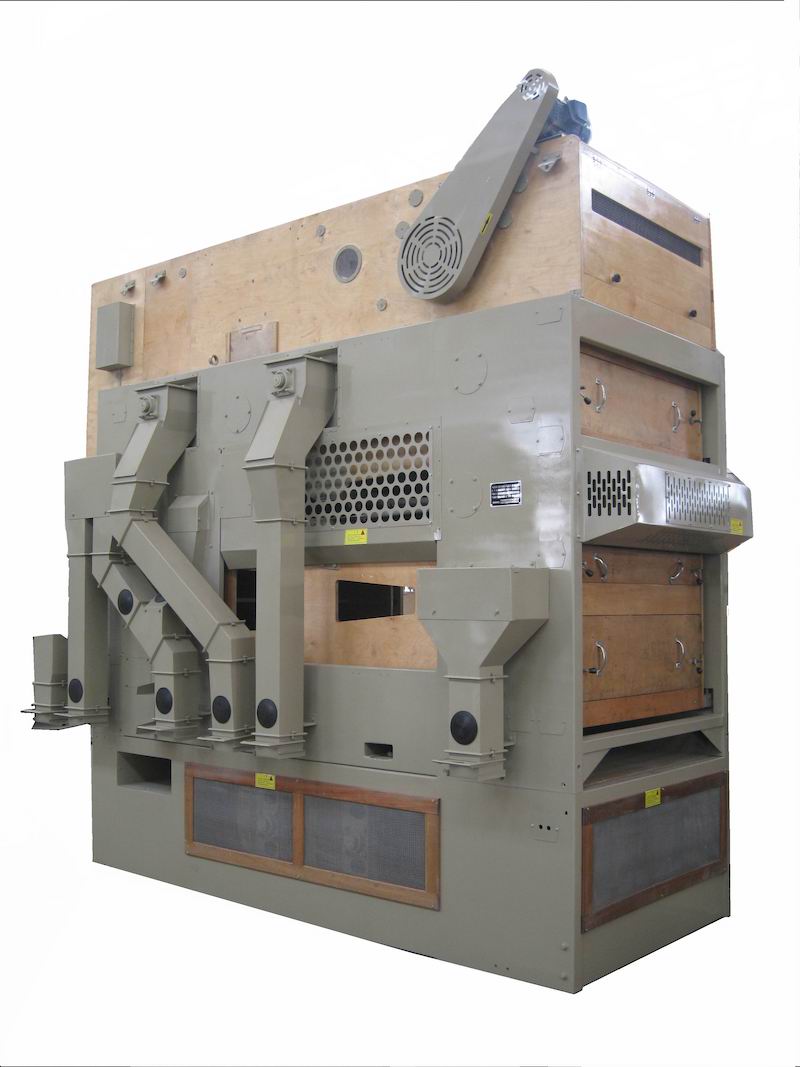

Our 5X series air screen seed cleaner is widely used for fine clean of wheat, rice, maize, barley, beans, spices, oil seeds, grass seeds, vegetable seeds, flower seeds and forestry seeds, cleaning and processing of Chinese herbal medicine. It can be used fine cleaning for grains, removing large, small and light impurities.
Multi layer screens equipped in opposite directions for good impurity cleaning performance;
Positive-negative pressure blower systems at top and bottom to remove light impurity and diseased seeds twice;
Screen can be changed and combined, according to different processing requirement;
Upper and lower screen decks dynamically balanced in opposite directions for good self-balance;
Screen frames, light removal and feeder parts are made of high-quality wood, good sealing and vibration absorption with low noise;
Wide adjustable range realizes fine cleaning and processing easily;
The overall steel frame type rubber ball cleaning device is adopted, and the cleaning effect is good;
Safety guard for moving parts to ensure safe operation;
Box types screen body structure efficiently reduce dust content in workshop;
Symmetric machine structure, discharge system can be changed from left to right, to meet end user’s requirement.
