Model | Sifting Area(m²) | Capacity(t/h) | Power(kW) | Rotary Dia.(mm) | Weight(kg) | Dimensions(mm) |
FSFJ1×10×63 | 2.5 | 1-1.5 | 0.75 | Φ45 | 320 | 1130×1030×1650 |
FSFJ1×10×70 | 2.8 | 1.5-2 | 0.75 | Φ45 | 400 | 1200×1140×1860 |
FSFJ1×10×83 | 4.5 | 2-4 | 0.75 | Φ50 | 470 | 1380×1280×1860 |
FSFJ1×10×100 | 7.0 | 3-6 | 1.1 | Φ50 | 570 | 1580×1480×1960 |
FSFJ1×10×120 | 9.8 | 6-10 | 1.5 | Φ50 | 800 | 1960×1890×2260 |
FSFJB1×10×83 | 5.8 | 4-7 | 0.75 | Φ40-50 | 880 | 1445×1445×2250 |
FSFJB1×10×100 | 8.5 | 5-8 | 1.1 | Φ40-50 | 980 | 1655×1655×2260 |
FSFJB1×10×120 | 12 | 6.5-10 | 1.5 | Φ40-50 | 1200 | 1904×1904×2260 |

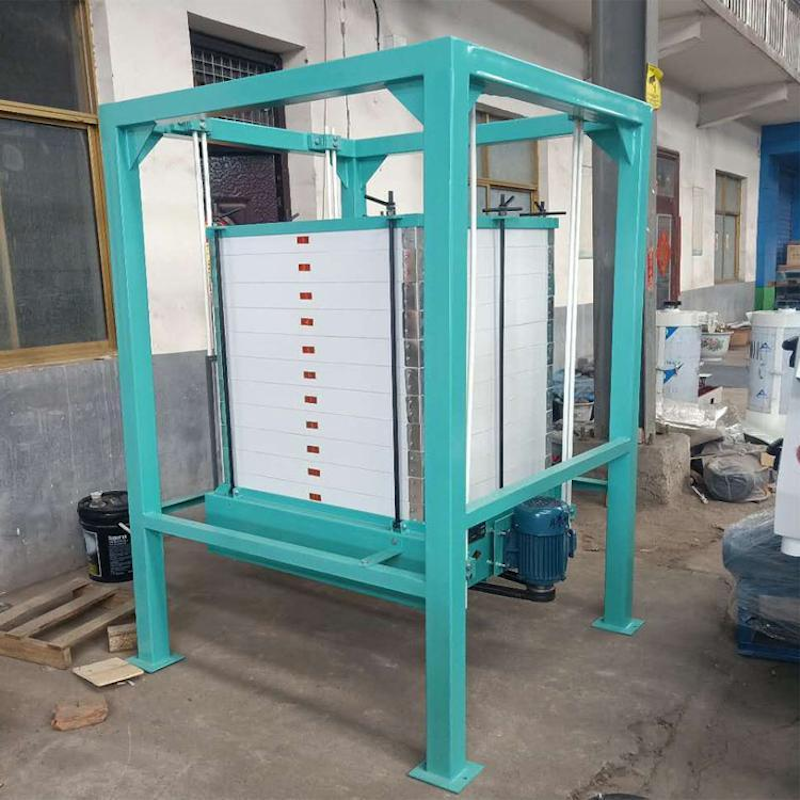

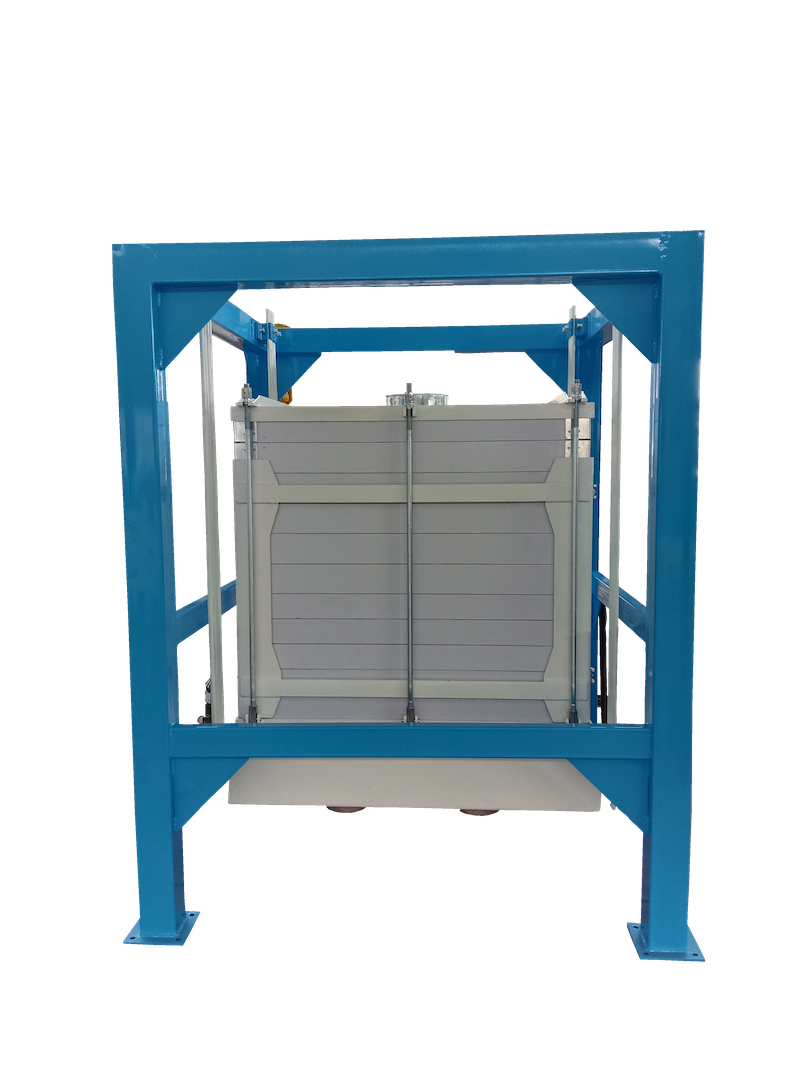

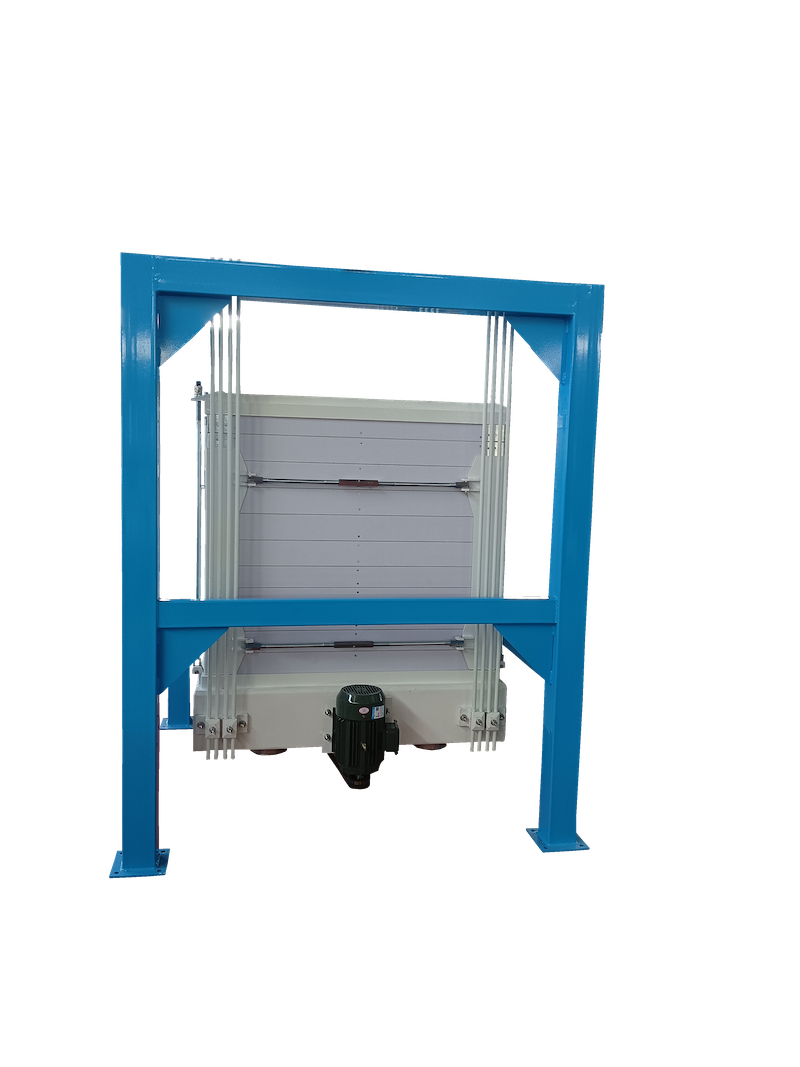

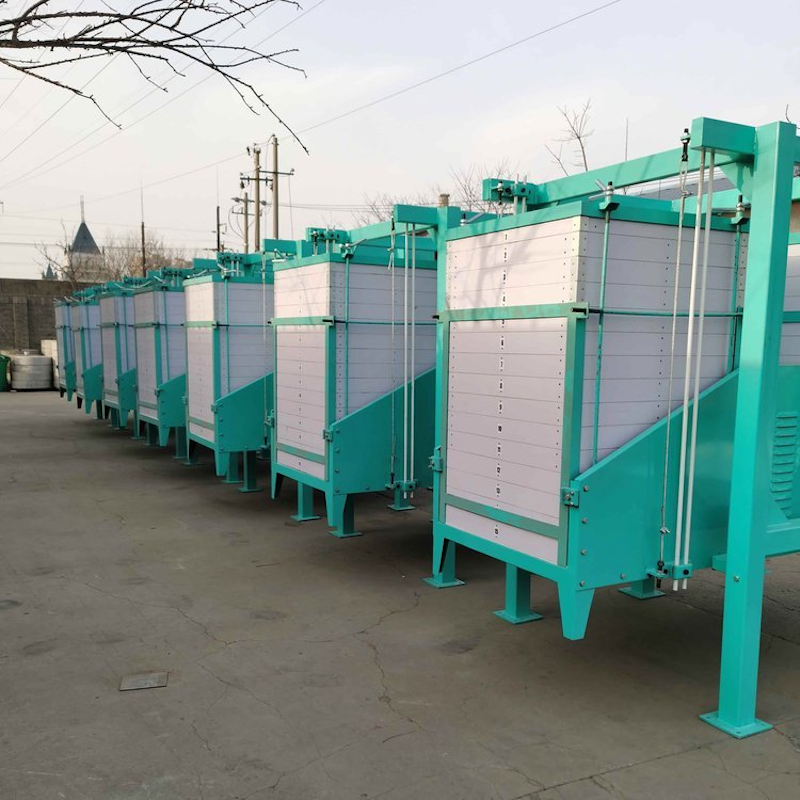

It is mainly used for inspecting flour in flour mills, sieving and classification after grading. There are common type and closed type to meet customer’s needs.
l Smaller size, strong applicability and more flexibility, especially suitable for installation in small workshops;
l The closed type has larger screening area and better sealing performance;
l Wooden double-sided plastic-coated sieve grids, with 6 to 12 grids configured according to different screening requirements;
l The sieve grid is pressed vertically and horizontally to ensure that the sieve grid does not loosen, shift or leak;
