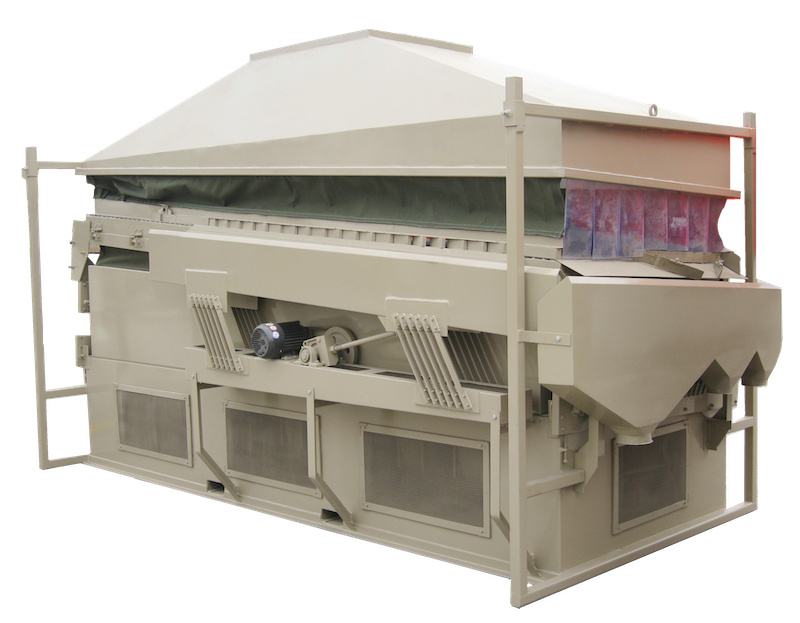

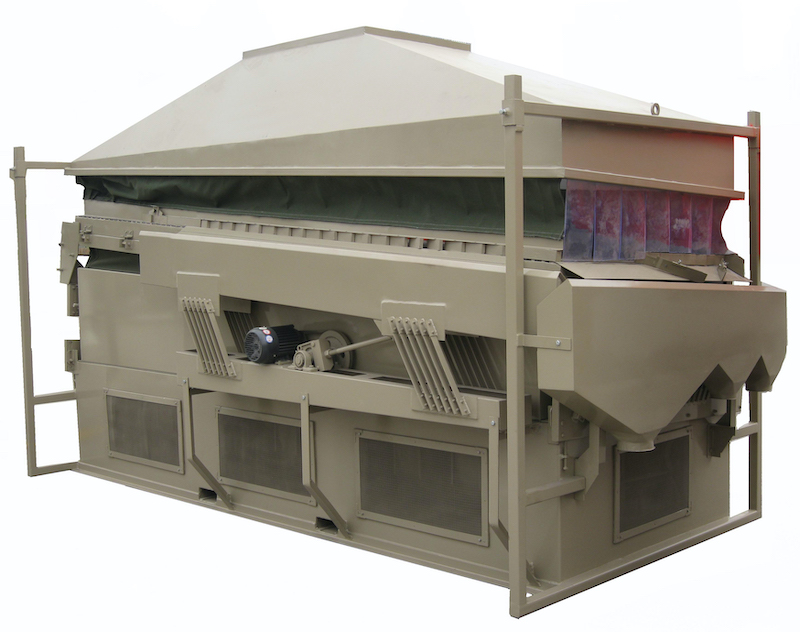

5XZ gravity separator

Our gravity separator is one of the key equipment for seed sorting and grading processing. It is a device for sorting lighter seeds from heavy seeds according to the principle of suspension characteristics and friction characteristics of seeds. The main function is to separate the more uniform seeds that have been cleaned by air-selection type cleaning machine, socket drum cleaning machine and other equipment according to the density, so as to remove poor development, incomplete maturity, insect damage, mildew and rotten seeds, germinated seeds . It can also separate mixtures which is similar sizes with granular but different weights, such as side-by-side stones, etc. The gravity separator is also an ideal equipment for cleaning and grading melon seeds, tea leaves, etc.

5XZ series gravity separator is composed by: base, fan, box, vibrating device, working table, vertical and horizontal angle adjustment mechanism, air volume and frequency adjustment device, feeding and discharging hopper and dust cover, etc.

l Blowers is composed of individual fan, which is easy to maintain and maintain, and the air volume of each fan can be adjusted step-less independently;

l Cellular vertical air distribution device mounted under the deck to make the air lifting evenly;

l Square woven mesh made of steel wire with no bottom fabric ensure air passing through no dead zones;

l Working platform is supported by two gas springs, which can be opened and closed easily and quickly, which is convenient for inspection of the vibration device and other components in the air chamber;

l Eccentrics are counter balanced giving smooth oscillation action to the deck;

l Good self-balancing performance, running at a higher eccentric speed, thereby greatly increasing its production capacity;
