Model | Capacity | Belt Width (mm) | Line Speed (m/s) | Conveying Height(m) | Load Width (mm) | Length (m) | Frame Width (mm) | Power (kW) | Lifting Power (kW) | |
Pack(Bag/h) | Bulk(t/h) | |||||||||
TDSL50×6 | 720 |
45-60 | 500 | 1-3 | 1.8-2.2 |
≤600 | 6 | 686 | 2.2 | 0.75 |
TDSL50×8 | 2.0-3.7 | 8 | 2.2 | |||||||
TDSL50×10 | 2.3-4.3 | 10 | 3.0 | 1.1 | ||||||
TDSL50×12 | 2.5-5.0 | 12 | 4.0 | |||||||
TDSL50×15 | 2.8-6.5 | 15 | 4.0 | 1.5 | ||||||
TDSL50×18 | 3.4-7.3 | 18 | 5.5 | |||||||
TDSL50×20 | 4.0-8.5 | 20 | 5.5 | 2.2 | ||||||
TDSL50×22 | 4.5-9.5 | 22 | 5.5 | |||||||
TDSL65×6 | 720 | 60-80 | 650 | 1-3
| 2.0-2.5 |
≤750 | 6 | 836 | 2.2 | 0.75 |
TDSL65×8 | 2.0-3.7 | 8 | 3.0 | |||||||
TDSL65×10 | 2.3-4.3 | 10 | 3.0 | 1.1 | ||||||
TDSL65×12 | 2.5-5.0 | 12 | 4.0 | |||||||
TDSL65×15 | 2.8-6.5 | 15 | 4.0 | 1.5 | ||||||
TDSL65×18 | 3.4-7.3 | 18 | 5.5 | |||||||
TDSL65×20 | 4.0-8.5 | 20 | 5.5 | 2.2 | ||||||
TDSL65×22 | 4.5-9.5 | 22 | 5.5 | |||||||

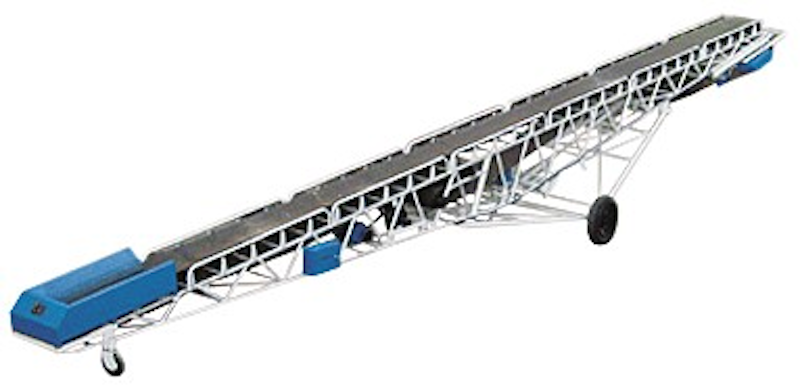

It is used for conveying, loading and unloading, stacking, and dumping of cement, coal powder, grain, chemical fertilizer or other small particle materials for bulk transportation and packaging.
l Herringbone non-slip wear-resistant belt, large transport capacity;
l Bold and thick load-bearing rails, thickness steel pipes, product quality is guaranteed；
l The frame is durable and the conveyor belt has no interface, smooth operation;
l Inflatable large tires, movable universal wheels, suitable for various venues.
