Model | Rated Capacity(t/h) | Power (kw) | Weight(kg) | Dimensions (L×W×H) | |
Pre-clean | Clean | ||||
TFXH60 | 40 | 9 | 2.2+0.75 | 489 | 1240×1005×1745 |
TFXH80 | 50 | 12 | 2.2+0.75 | 538 | 1440×1005×1745 |
TFXH100 | 65 | 16 | 3+0.75 | 538 | 1640×1005×1745 |
TFXH125 | 83 | 20 | 3+0.75 | 630 | 2300×1005×1745 |
TFXH150 | 100 | 24 | 2.2×2+1.1 | 680 | 2550×1005×1745 |
TFXH180 | 105 | 28 | 3×2+1.1 | 759 | 2850×1005×1745 |
TFXH200 | 120 | 32 | 3×2+1.1 | 806 | 2870×1005×1745 |

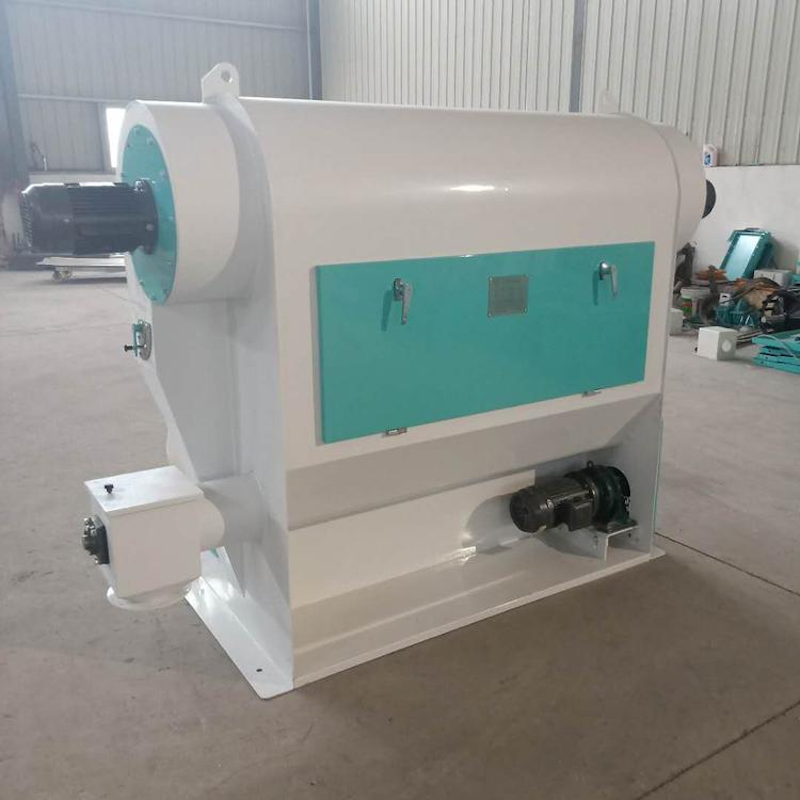

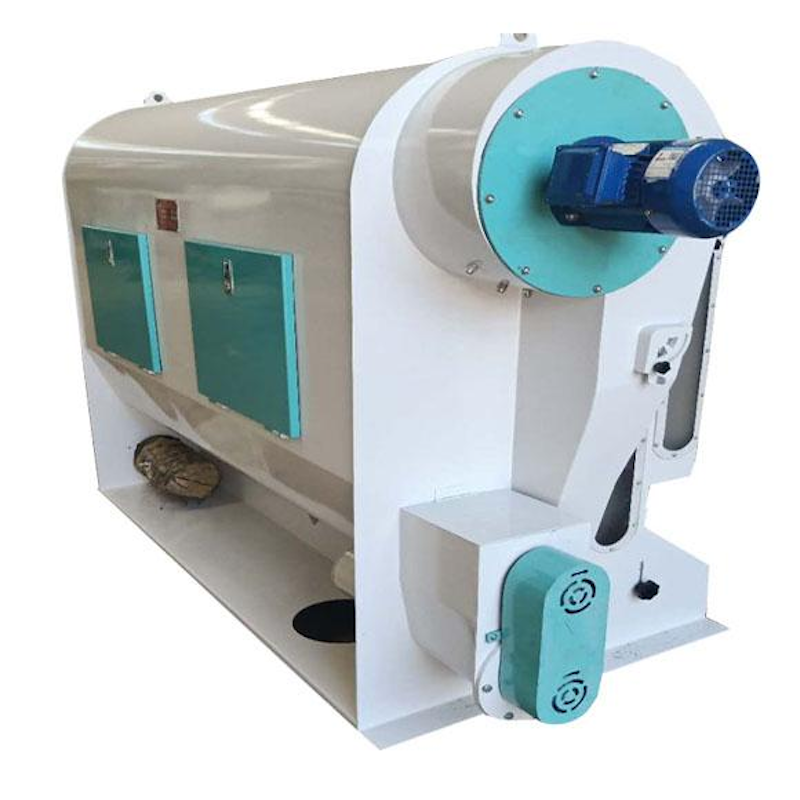

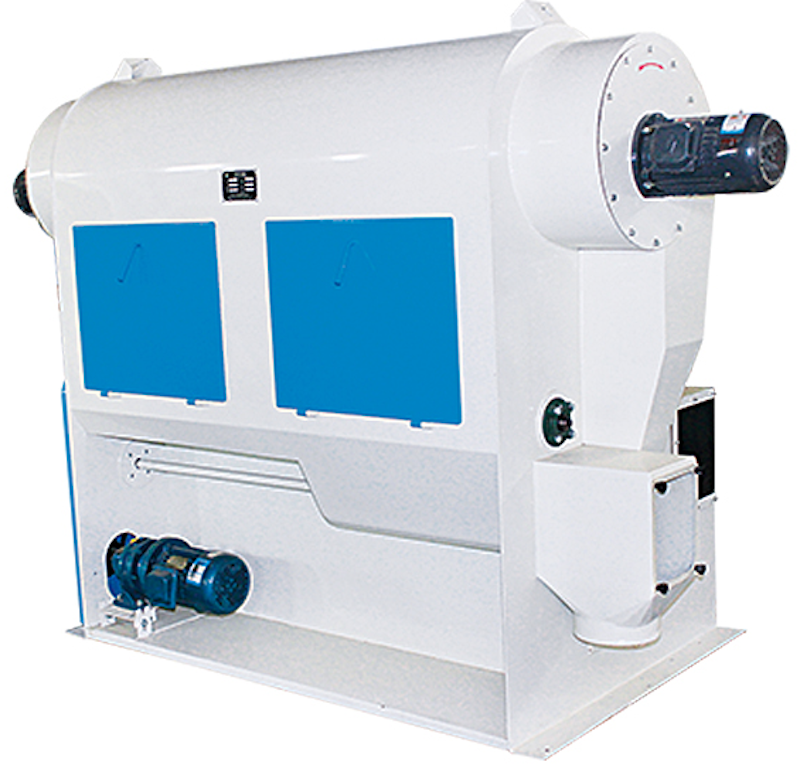

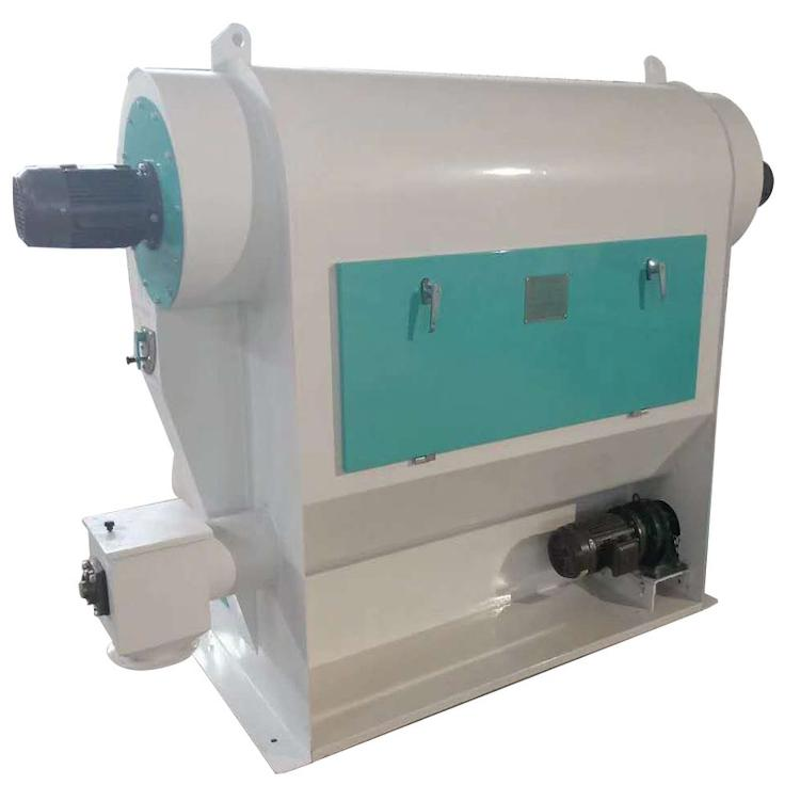

TFXH series air recycling aspirator is specially used to separate low-specific gravity impurities such as hulls and dust from grains ( wheat, maize, barley, etc.) by suction. It can be used in grain depots, flour mills, rice mills, corn processing plants, oil plants, feed plants, starch plants, alcohol plants, etc. It can be used alone or in combination with a vibrating screen, a flat rotary screen or a wheat thresher.
Our TFXH series self-circulating air separator produced by our company is mainly composed by roller feeder, light impurities separator, air circulation fan, air circulation channel, light impurities discharge and air shutter device and pure grain outlet.
l Self contained blower and air recycling system to separate lights and dust from grain stream;
l Unique mechanism for impurity discharge and air tight;
l Double screw air lock and dust reduction structure;
l Large air volume, good effect of closed wind and dust reduction
