Model | Capacity(wheat) (t/h) | Sieve Width (cm) | Inclination (°) | Rotary Speed (r/min) | Power (kW) | Air Volume (m³/h) | Weight (kg) | Dimensions (mm) |
TQLMZA80 | 4~6 | 80 | 上筛面7° 下筛面8° Upper 7° Lower 8° | 300 | 0.55 | 3600 | 750 | 2300×1210×1320 |
TQLMZA100 | 6~8 | 100 | 300 | 0.55 | 4800 | 800 | 2300×1410×1320 | |
TQLMZA125 | 8~12 | 125 | 300 | 0.75 | 5400 | 850 | 2300×1610×1320 | |
TQLMZA160 | 10~15 | 150 | 300 | 1.1 | 6000 | 900 | 2300×2010×1320 | |
TQLMZA200 | 15~20 | 200 | 300 | 1.5 | 7200 | 1100 | 2300×2410×1320 |

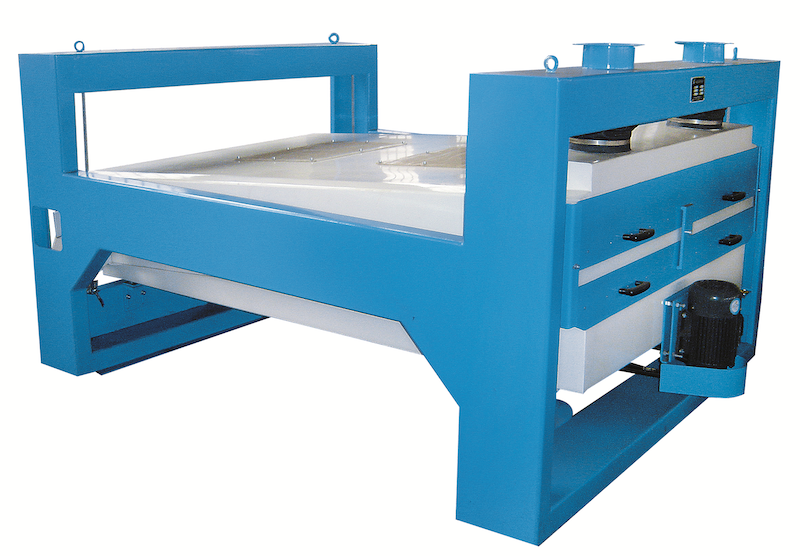

TQLMZA series planar rotary sieve is developed on the basis of TQLMZ series planar rotary sieve, digesting and absorbing the advanced technology of similar equipment in domestic and abroad. It is the equipment for cleaning large, small and light impurities of granular materials in grain, feed, food, chemical, brewing and other industries. To achieve better cleaning effect, different sieves can be selected, according to the requirements of separating different materials.
TQLMZA series planar rotary sieve is mainly composed with frame, sieve body, driving device, limit device and vertical suction separator.
l The equipment is well sealed, and the dust does not flow out;
l Equipped with a rubber ball cleaning device, which can effectively clean the screen surface and ensure the output;
l Low noise, small floor area, stable operation, low energy consumption and high output;
l Multiple functions, sturdy and durable, easy to operate, high level automation;
l Stable performance, compact structure, long service life;
