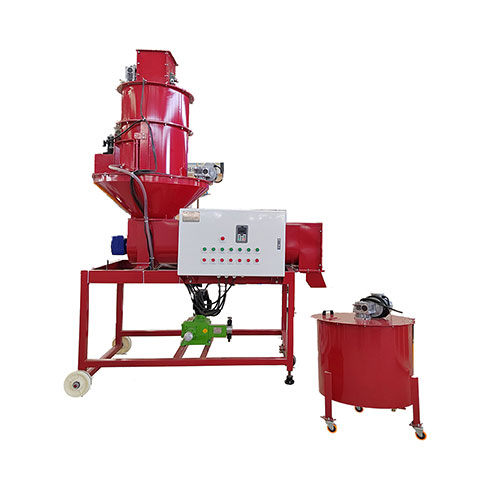

5BG series seed coating machine

5BG seed coating machine is a new generation of seed coating processing equipment developed by our company on the basis of digesting and absorbing various technologies and combining progress and innovation. It is widely used in wheat, corn, soybean, rice, cottonseed, grass seed , Coating processing of vegetable seeds and tree flower seeds.

l Compared with the traditional lever bucket feeding mechanism, the seed feeding mechanism has the characteristics of continuous feeding, accurate measurement, and adjustable feeding volume;

l The initial mixing mechanism of seeds and seed coating agent is a double disc type, the upper disc is a seed disc, the lower disc is a medicinal liquid disc, and the upper and lower discs are synchronously driven by a motor, which solves the problem of the seed space of the umbrella-shaped distributor. unevenness problem;

l The liquid medicine spinner is wave-type, which can make the liquid medicine evenly atomized under high-speed rotation, making the mist particles finer and improving the uniformity of coating;

l The desilting mechanism adopts a brush structure. Driven by the cleaning motor, the engineering plastic ring gear is driven by the cleaning motor, and the engineering plastic ring gear rotates to drive the cleaning brush to scrape off the materials and liquid medicine adhered to the inner wall of the seed primary mixing chamber. At the same time, it also has a stirring effect on the material;

l The stirring shaft assembly is equipped with a shift fork arranged at a certain angle and a crescent-shaped blade, whose function is to further mix the material and the liquid medicine and then discharge it out of the machine;

l The intelligent control system is composed of programmable controllers, hydraulic monitors and sensors to complete the automatic control of the equipment.
