Model | 4×16 | 6×16 | 8×16 | 2×24 | 4×24 | 6×24 | 8×24 | 10×24 | 4×28 | 6×28 | 8×28 | 10×28 | |
Sifter Height (mm) | 640 | 1800 | 1800 | 1800 | 2300 | 2300 | 2300 | 2300 | 2300 | 2470 | 2470 | 2470 | 2470 |
740 | 1800 | 1800 | 1800 | 2300 | 2300 | 2300 | 2300 | 2300 | 2470 | 2470 | 2470 | 2470 | |
Sieve Height(mm) | 640 | 1395 - 1435 | 1395 - 1435 | 1395 - 1435 | 1865 - 1955 | 1895 - 1935 | 1895 - 1935 | 1875 - 1915 | 1875 - 1915 | 2035 - 2075 | 2035 - 2075 | 2035 - 2075 | 2035 - 2075 |
740 | 1395 - 1435 | 1395 - 1435 | 1395 - 1435 | 1865 - 1955 | 1865 - 1905 | 1865 - 1905 | 1865 - 1905 | 1865 - 1905 | 2035 - 2075 | 2035 - 2075 | 2035 - 2075 | 2035 - 2075 | |
Min Install Height (mm) | 640 | 2800 | 2800 | 2800 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 | 3540 | 3540 |
740 | 2800 | 2800 | 2800 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 | 3540 | 3540 | |
Power(kW) | 640 | 3 | 4 | 5.5 | / | 3 | 4 | 7.5 | 15 | 4 | 5.5 | 11 | 15 |
740 | 3 | 5.5 | 7.5 | 3 | 5.5 | 7.5 | 11 | 18.5 | 7.5 | 7.5 | 15 | 18.5 | |
Rotation Dia.(mm) | Ф64+2 | ||||||||||||
Rotary Speed(r/min) | 245 | ||||||||||||
Sifting Area(m²) | 640 | 17.7 | 26.5 | 35.3 | / | 26.5 | 39.7 | 53 | 66.25 | 30.9 | 46.4 | 61.8 | 77.3 |
19.9 | 29.9 | 39.8 | / | 29.9 | 44.8 | 59.7 | 74.6 | 34.8 | 52.2 | 69.7 | 87.1 | ||
22.1 | 33.2 | 44.3 | / | 33.2 | 49.8 | 66.4 | 83.0 | 38.8 | 58.1 | 77.5 | 96.9 | ||
740 | 24.8 | 37.2 | 49.7 | 18.6 | 37.2 | 55.9 | 74.5 | 93.1 | 32.3 | 65.2 | 86.9 | 108.6 | |
28.2 | 42.2 | 56.3 | 18.6 | 42.2 | 63.4 | 84.5 | 105.6 | 49.33 | 73.9 | 98.6 | 123.3 | ||
30.1 | 45.1 | 60.2 | 18.6 | 45.1 | 67.7 | 90.2 | 112.8 | 52.6 | 79 | 105.3 | 131.6 | ||
Weight(kg) | 640 | 2550 | 2800 | 3200 | / | 2900 | 3550 | 5200 | 5600 | 3350 | 4100 | 5600 | 6000 |
740 | 2990 | 3150 | 3500 | 1600 | 3700 | 4550 | 6000 | 6600 | 3950 | 4900 | 6500 | 7000 | |

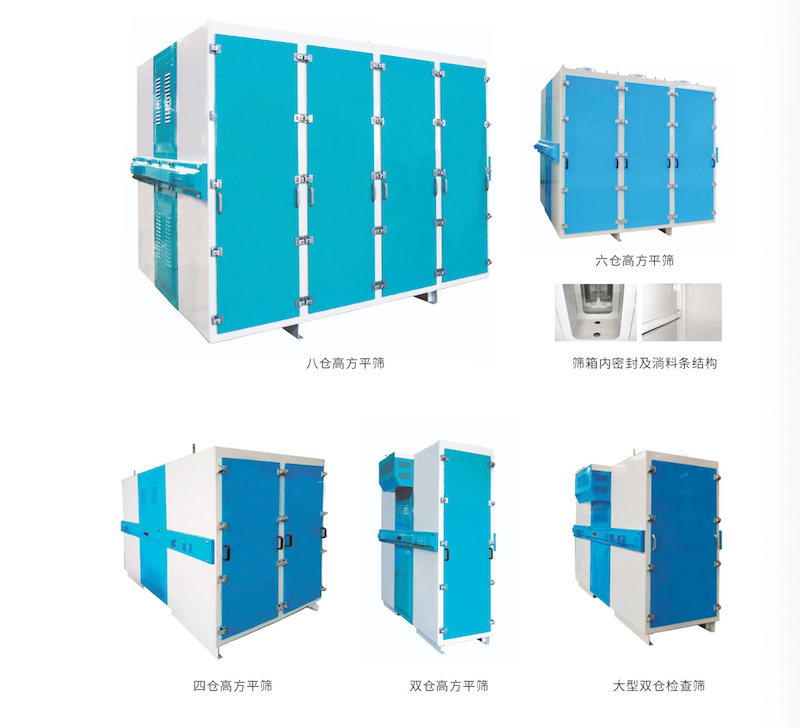

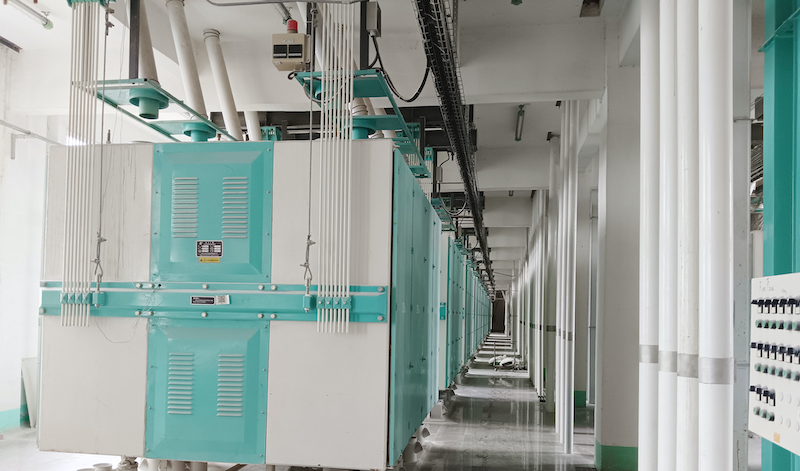

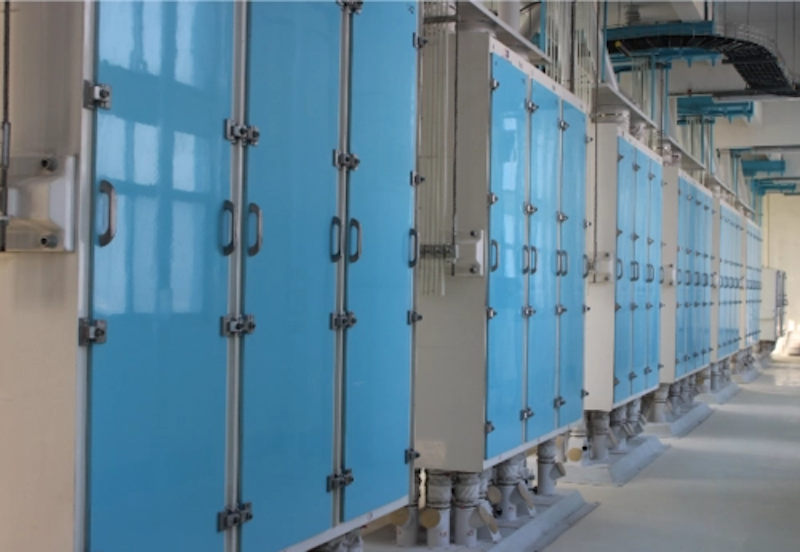

Our FSFG series high square plan sifter is suitable for all kinds of powder and granular materials' classification, can be equipped with 2, 4, 6, 8, and 10 bins, each bin has 16-30 screen grids, and the screen area is from 12㎡ to 131㎡. It has widely used to classifying and screening in corn processing plants, corn starch factories, flour mills, feed mills，food processing plants, pharmaceutical plants, chemical plants. It is an ideal device for particulate material classifying and screening, it is low power consumption, high yield, good sealing performance, no dust leakage.
l Large screening area, strong screening capacity, easy cleaning and low maintenance;
l Transmission frame is made of steel plate, high strength and durable;
l Aluminum alloy sieve of high precision, no deformation and long service life;
l The cleaning block can clean each corner of the screen to ensure the hygiene of the equipment;
l Different material passages are isolated from each other, and the sealing performance is good to prevent material leakage.
