Specification and model | motor speed(r/min) | Amplitude (mm) | Power (kw) | Weight (kg) | Overall dimensions(mm) |
TDXZ100×30 |
1430 |
0.8~3.2 | 0.37 | 220 | 1480×1260×530 |
TDXZ130×30 | 0.37 | 300 | 1780×1560×640 | ||
TDXZ130×50 | 0.37 | 280 | 1780×1560×560 | ||
TDXZ160×50 | 0.55 | 550 | 2080×1860×704 | ||
TDXZ200×50 | 0.55×2 | 820 | 2480×2260×895 |

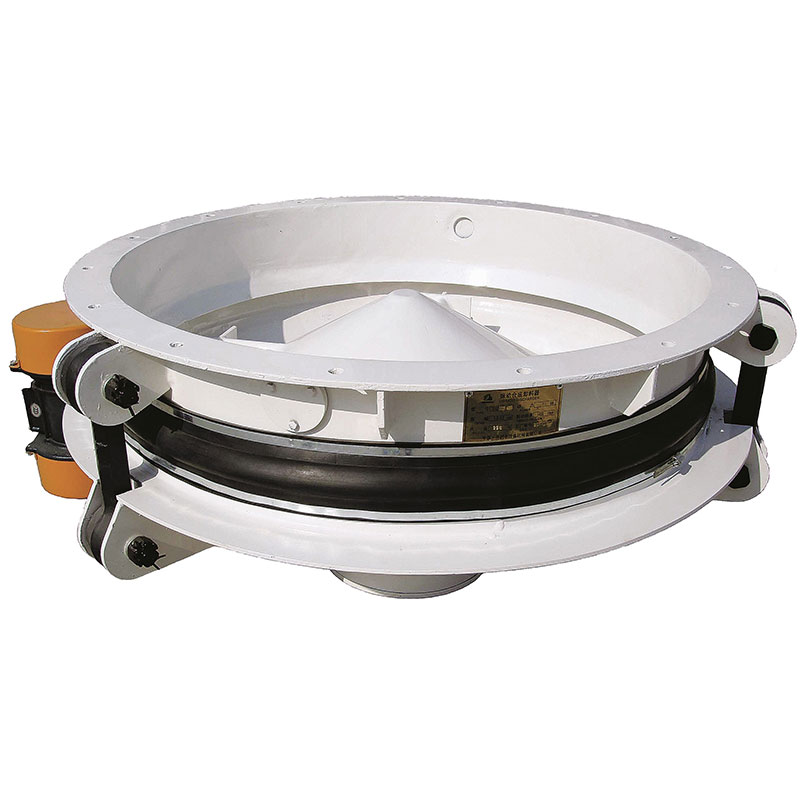

The equipment is mainly used for the discharge of flour, bran and other material bin bottom. The principle is to use the vibration inertia of the vibration motor to make the bottom of the warehouse as a high-frequency vibration to make the material flow out, and the central part of the discharge hopper is provided with a conical discharge tray to promote the material in the warehouse to flow out slowly and evenly from the outlet to prevent the material in the warehouse from caking
Vibration bin bottom discharge device, to avoid the material agglomeration in the discharge hopper after closing the gate
The lower end of the discharge tray is installed with a broken arch cylinder, and the piston rod of the broken arch cylinder is connected with a pusher block for pushing out the remaining plate material in the discharge hopper
The vibration motor is installed on the upper part of the lower side wall of the discharge hopper to the cone. In the discharge process, the motor vibration causes the material at the bottom of the bin to form a loose material flow. In the vibration process, the material will not be shaken and stacked at the outlet at the bottom of the discharge hopper to ensure smooth discharge.
The installation position of the vibration motor is adjusted upward to reduce the fatigue damage to the discharge hopper, and the shell of the discharge hopper is not easy to crack after long-term use
