Model | Sifter Area(m²) | Capacity(t/h) | Power(kW) | Rotary Dia.(mm) | Weight(kg) | Dimensions(mm) |
FSFJ2×10×63 | 4.2 | 2-2.5 | 1.1 | Φ50-55 | 550-580 | 1680×1270×1500 |
FSFJ2×10×70 | 6.2 | 3-3.5 | 1.1 | Φ50-55 | 650-670 | 1840×1350×1760 |
FSFJ2×10×83 | 8.5 | 5-10 | 1.5 | Φ50-55 | 730-1000 | 2386×1678×2250 |
FSFJ2×10×100 | 13.5 | 8-14 | 2.2 | Φ50-55 | 1200-1600 | 2856×1811×2250 |
FSFJB2×10×83 | 11.5 | 8-12 | 1.5 | Φ50-55 | 900-1000 | 2386×1678×2250 |
FSFJB2×10×100 | 17 | 10-16 | 2.2 | Φ50-55 | 1400-1800 | 2856×1811×2250 |

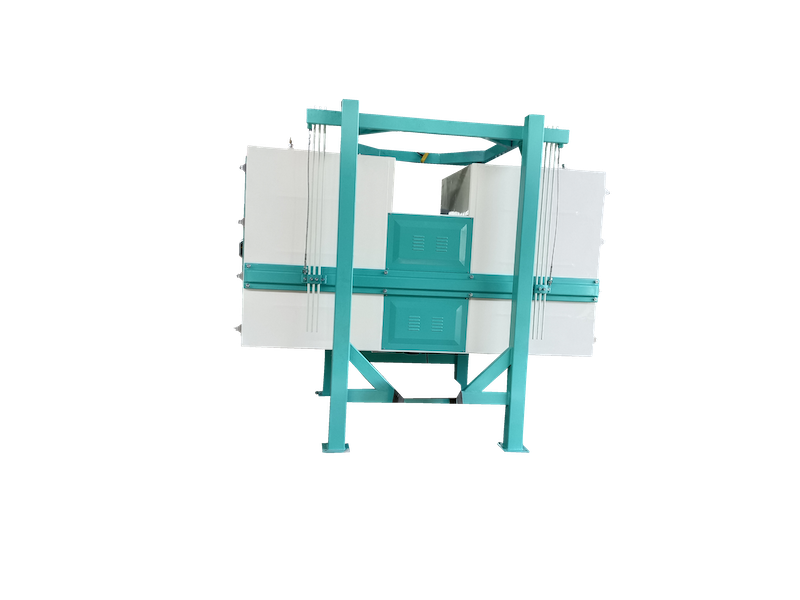

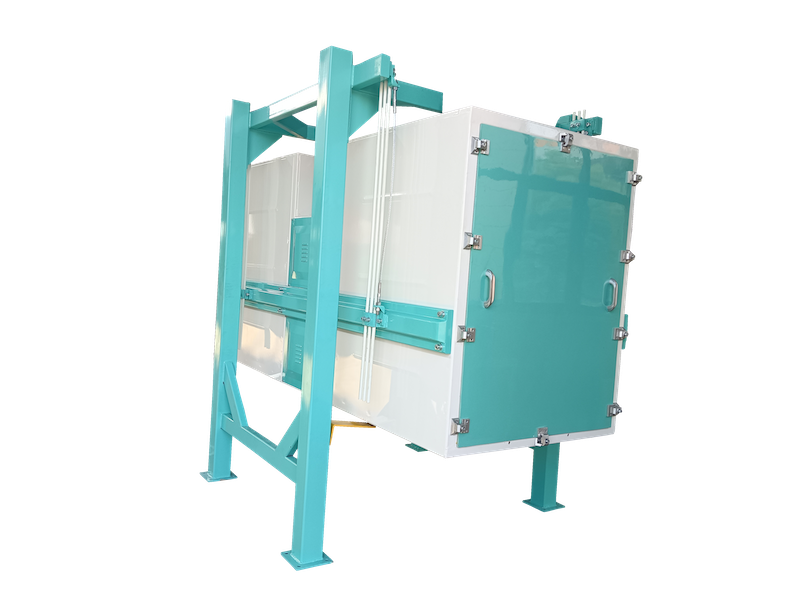

It is mainly used for inspecting flour in flour mills, sieving and classification after grading. There are common type and closed type to meet customer’s needs.
l The closed type has larger screening area and better sealing performance;
l Wooden double-sided plastic-coated sieve grids, with 6 to 12 grids configured according to different screening requirements;
l The sieve grid is pressed vertically and horizontally to ensure that the sieve grid does not loosen, shift or leak;
l Reasonable parameter configuration of speed and slewing diameter;
l The screen body is hoisted by the glass fiber reinforced plastic boom, and the operation is stable, and the swimming time of the start and stop is less;
l Safety wire rope ensures safety and easy leveling.
