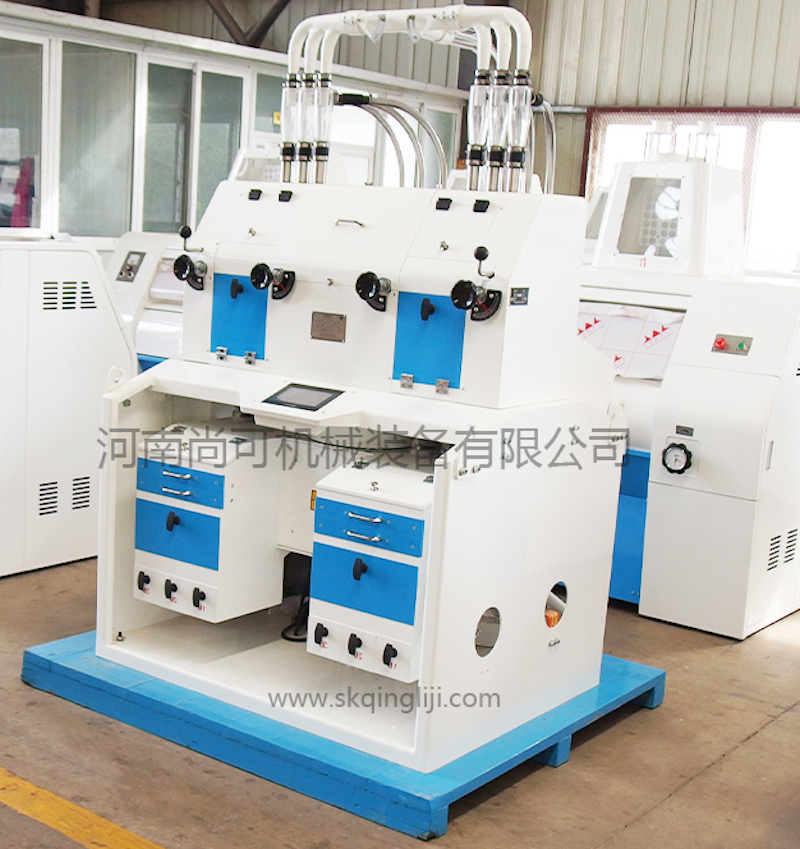

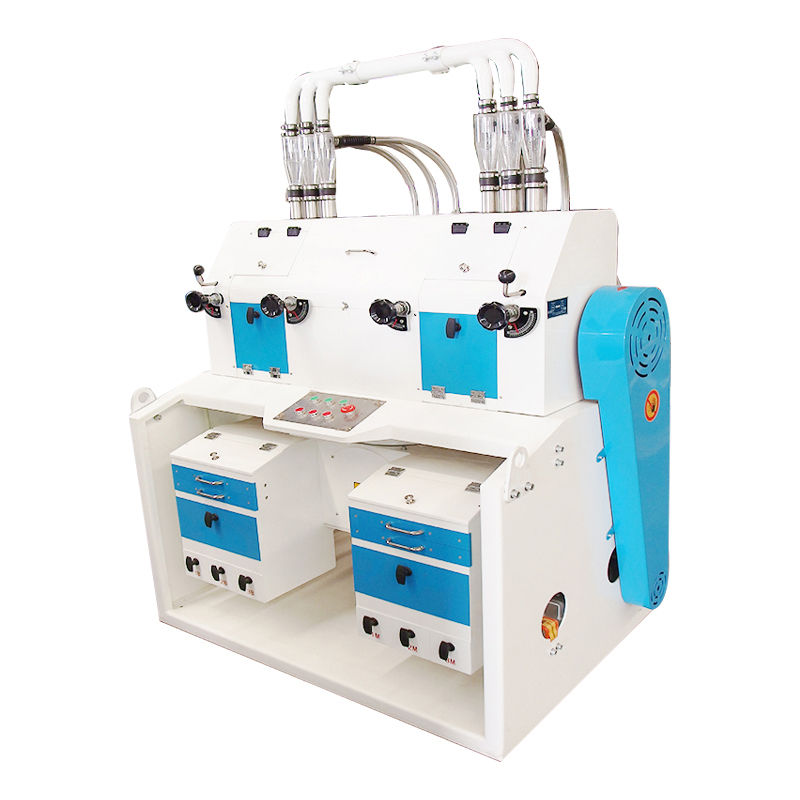

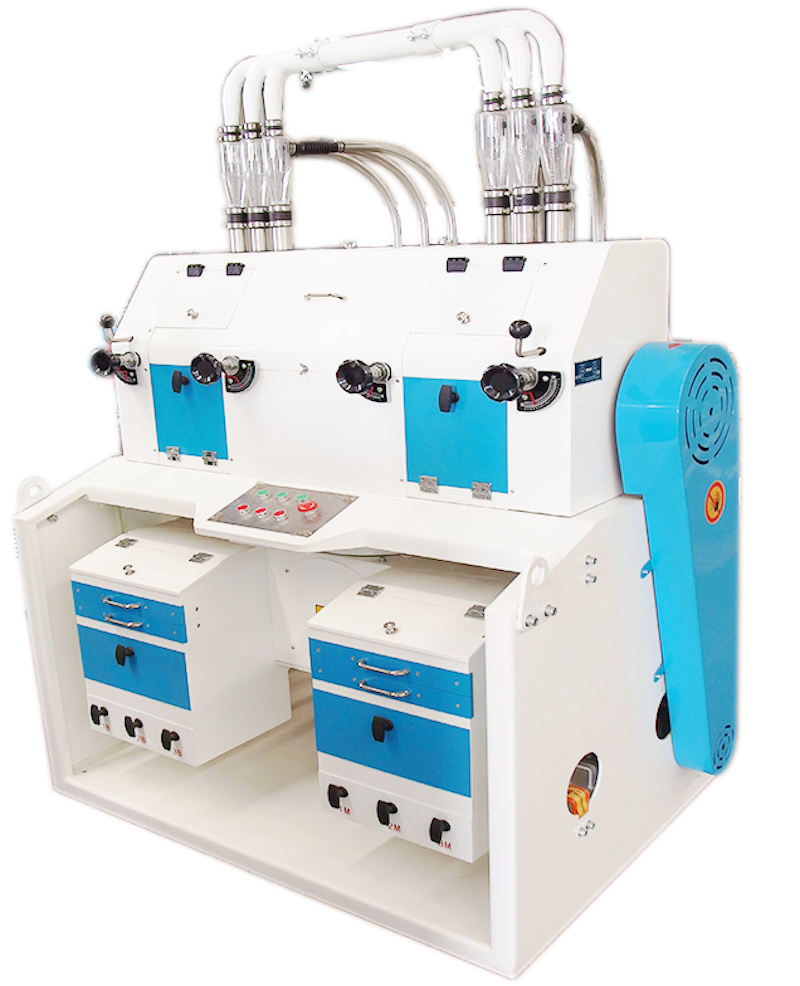

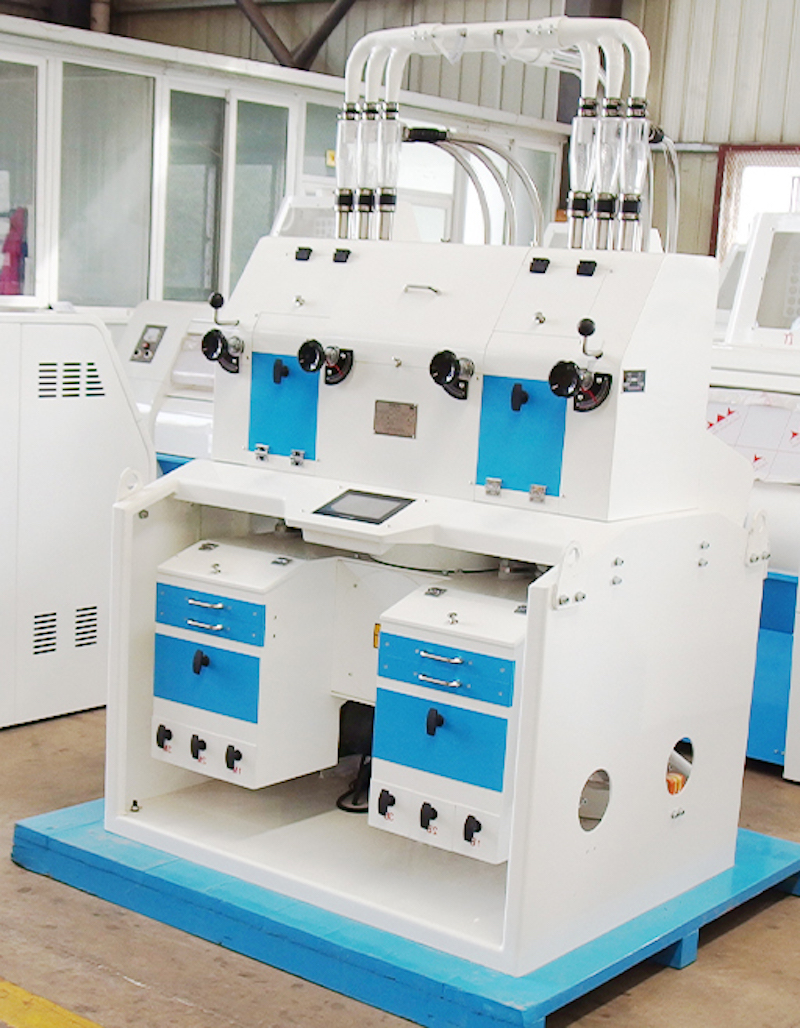

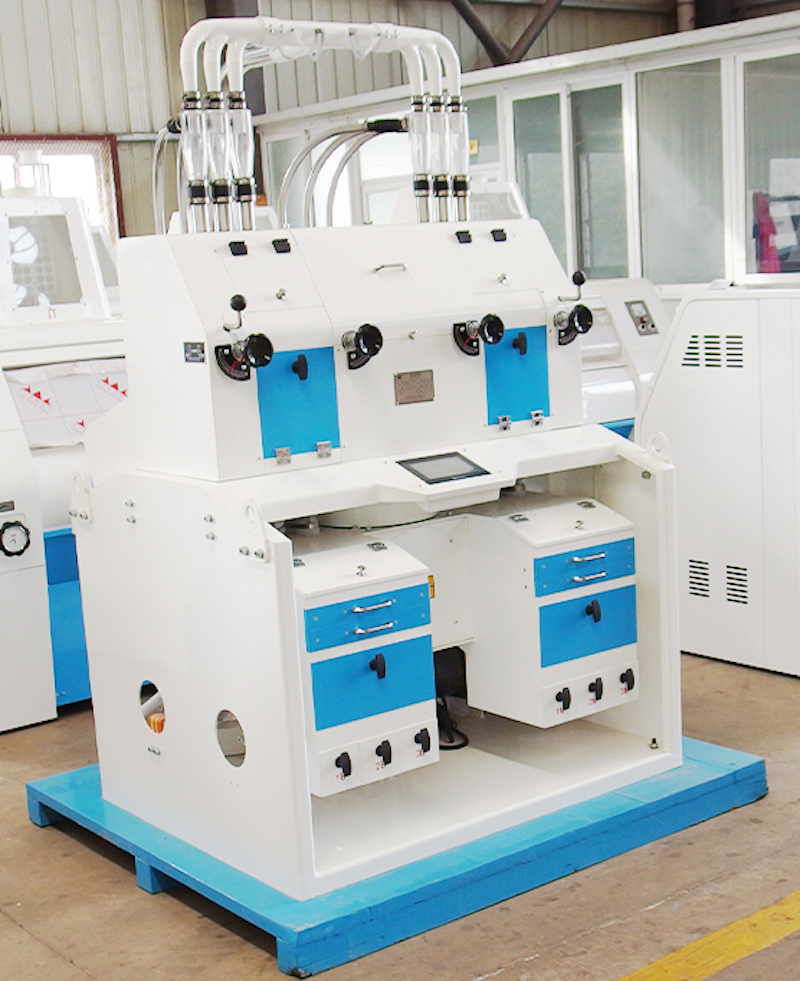

LSM20 experimental mill

LSM20 experimental mill

  • Subcategory:Pulverizing equipment
  • Number of views:
  • Two-dimensional code:
  • Time:2023-08-24

Technical parameter



Model

Max Capacity

(kg)

Mill Roller

(mm)

Fast Roller Speed (r/min)

Fluted Roller Speed Rate

Smooth Roller Speed Rate

Power(kW)

LSM20

10

Φ155×200

500

2.5:1

1.5:1

1.5+1.5+0.55

Sieve Speed(r/min)

Rotation Diameter(mm)

Air Volume(m³/h)

Air Pressure(Pa)

Weight(kg)

Dimensions(mm)

298

23

669

2710

650kg

1330×1100×1870

Product use

The flour extraction rate of wheat is one of the important quality indicators of wheat. Flour mills all over the world are concerned about the flour extraction rate of wheat. Our LSM20 experimental mill is a fully automatic flour rapid grinding testing equipment for experiments. It can better reflect the milling quality of wheat. By flour milling test, it can evaluate the flour extraction rate and make a general flour milling evaluation to provide guidance basis for large-scale commercial flour milling plant. Widely used in wheat breeding department, wheat quality research department and large scale commercial flour mill.


Product structure

Our LSM20 experimental mill is mainly composed of feed hopper, centrifugal dust collector, air lock, feeding system, grinding system, screening system, transmission system, discharge port and collecting hopper.


Product characteristics

The leading "three skins and three cores" process provides a guiding basis for large-scale commercial milling;

Feed grinding and screening integrated structure, easy to operate;

Adjustable screw feeding mechanism to ensure uniform feeding;

The sieve rotating, less powder accumulation in the sieve;

The collection bucket and the sieve body have a tight structure, and there is no "floating powder" phenomenon;

Screen surface and brake dragon chain automatic cleaning;

Imported bearing configuration;
