Model | Screen Size （cm） | Rated Capacity （t/h） | Screen Dip Angle （°） | Vibration direction angle（°） | Amplitude (mm) | Power （kW） | Rotary Speed （r/min） | Suction air volume （m³/h） | wind presssure KPa (kN/m²) | weight （kg） | Size （mm） | |||
Pre-cleaning | Cleaning | Pre-cleaning | Cleaning | Pre-cleaning | Cleaning | |||||||||
TQLZ40×80 | 40×80 | 3 | 2 | 6 | 6 | 25 | 20 | 4~5 | 2×0.12 | 1140 | 1320 | 35 | 190 | 1270×700×1600 |
TQLZ60×100 | 60×100 | 12 | 4 | 6 | 6 | 25 | 20 | 5~5.5 | 2×0.25 | 960 | 1920 | 50 | 360 | 1640×1210×1322 |
TQLZ100×100 | 100×100 | 20 | 7 | 6 | 6 | 25 | 20 | 5~5.5 | 2×0.25 | 960 | 3000 | 50 | 420 | 1640×1550×1382 |
TQLZ100×150 | 100×150 | 30 | 11 | 9 | 6 | 25 | 20 | 5~5.5 | 2×0.37 | 960 | 4800 | 50 | 520 | 2170×1550×1530 |
TQLZ100×200 | 100×200 | 40 | 14 | 12 | 6 | 25 | 20 | 5~5.5 | 2×0.37 | 960 | 5400 | 50 | 540 | 2640×1550×1557 |
TQLZ150×150 | 150×150 | 45 | 16 | 9 | 6 | 25 | 20 | 5~5.5 | 2×0.75 | 960 | 6000 | 50 | 630 | 2170×2180×1600 |
TQLZ150×200 | 150×200 | 60 | 22 | 12 | 6 | 25 | 20 | 5~5.5 | 2×0.75 | 960 | 8100 | 50 | 650 | 2660×2180×1636 |
TQLZ150×250 | 180×200 | 70 | 26 | 12 | 6 | 25 | 20 | 5~5.5 | 2×1.1 | 960 | 9600 | 50 | 1000 | 2700×2480×1873 |
TQLZ150×270 | 150×270 | 100 | 30 | 15 | 10 | 35 | 30 | 4~5 | 2×1.5 | 960 | 8100 | 50 | 1200 | 2660×2180×1636 |
TQLZ200×200 | 180×270 | 120 | 35 | 15 | 10 | 35 | 30 | 4~5 | 2×1.5 | 960 | 9600 | 50 | 1500 | 2660×2480×1636 |

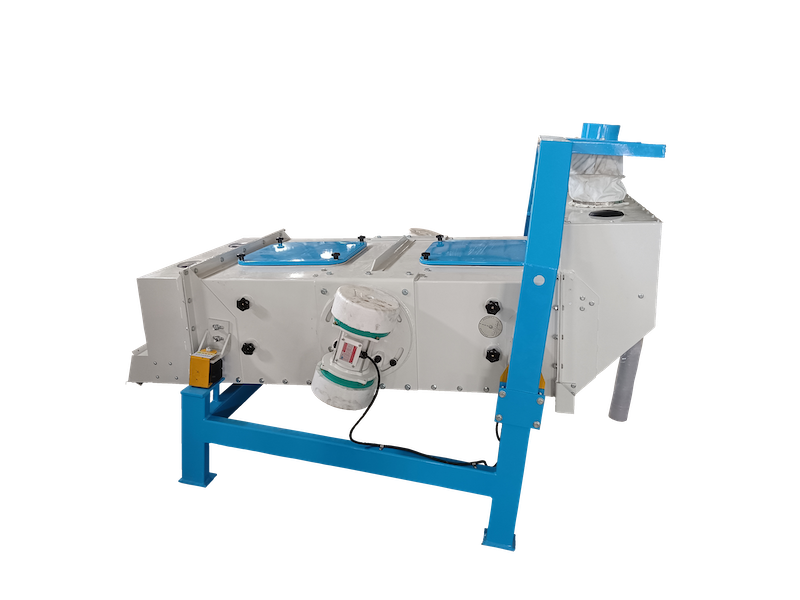

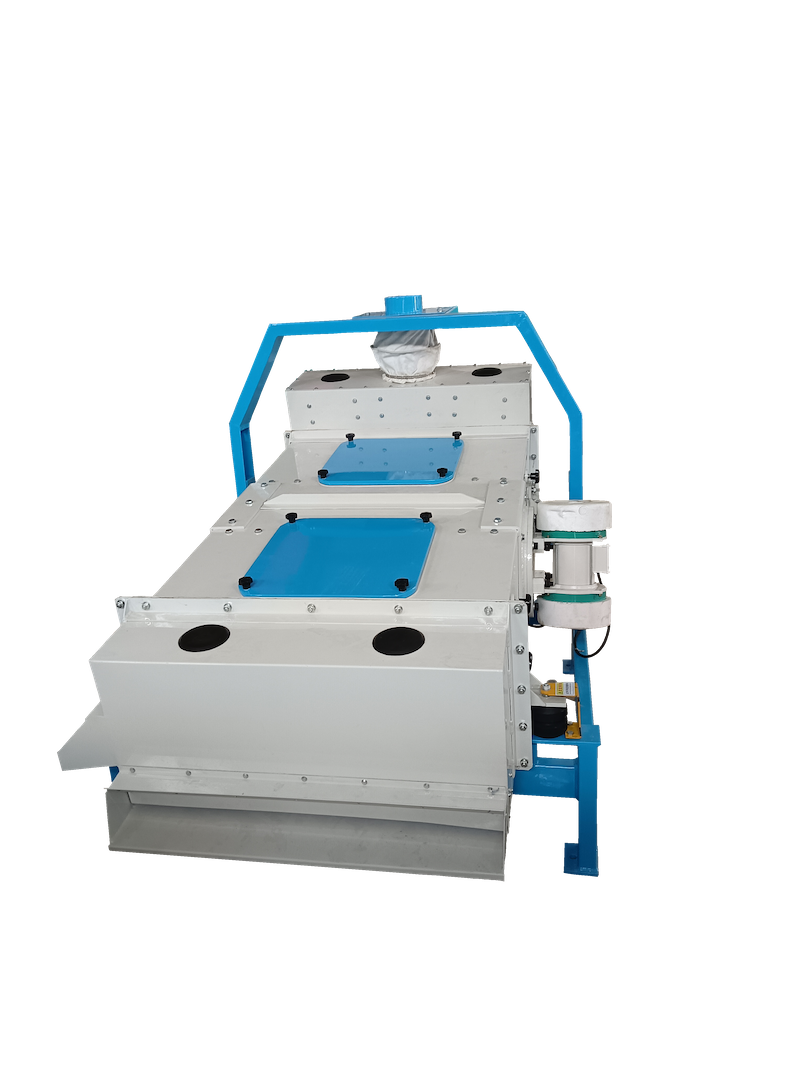

Our TQLZ series high effective vibration cleaner with simple structure, stable speed, which is ideal cleaner for grain depots, seed companies, milling industries, rice, feed, chemical industry, food processing and other industries. It can clean various granular materials such as sorghum, wheat, corn, cocoa beans, soybeans, rice, and oil by changing different screens. It can remove slight impurities equipped with a wind separator, the vibration cleaner will work in a negative pressure state, without dust spillage.
TQLZ series high effective vibration cleaner mainly composed by frame, feeding box, vibration motor, machine body and outlet box.
l Good effect in dealing with medium and small impurities;
l Vibration movement, less vibration to floors and ground;
l Screen grid is easy to install and take out;
l The vibrating motor directly drives the screen body, without dedicated transmission, less malfunction;
l To meet different needs, there are fixed type and mobile type for customers.
